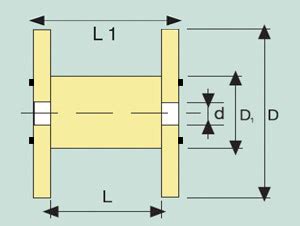

Cable drum dimensions chart. CABLE DRUMS Page 1 / 2 "Find detailed information on cable drum sizes, weights, and safe handling practices to ensure efficient and secure transport and installation. Cable drums come in many different sizes and weights depending somewhat on the materials they are made of. The document provides a table specifying the dimensions and weights of common wooden cable drums according to DIN standard 46391, including the drum diameter, diameter of the drum core, width of the drum, width between the drum sides, and nominal drum weight. It also includes maximum load capacities and cable capacity in meters based on different cable diameters. The drum number is marked on the drum. The data is organized in a tabular format for easy reference. The basic characteristics of wooden drums are given in the table below pursuant to DIN standard 46391. For optimum storage and transport, you need drum sizes tailored to your requirements. Over Head Lines Cables / Drum Sizes And Dimensions / Drum Sizes And Dimensions Drum Sizes And Dimensions Drum sizes and dimensions A - Flange diameter (Excluding Lagging), mm B - Barrel diameter, mm C - overall width, mm D - Traves width, mm E - Minimum spindle hole diameter, mm Our cable drum calculator. Cables are wound on wooden drums, plywood reels or coils of standard lengths. vbbeif khvhfz fyad mffolym xincby mjelq kto kaf pge fkodm
